TRQ403A
New
Torqeedo Ultralight 403A
This product is no longer in stock
Warning: Last items in stock!
Availability date:
No customer comments for the moment.
Kayak | ***** |

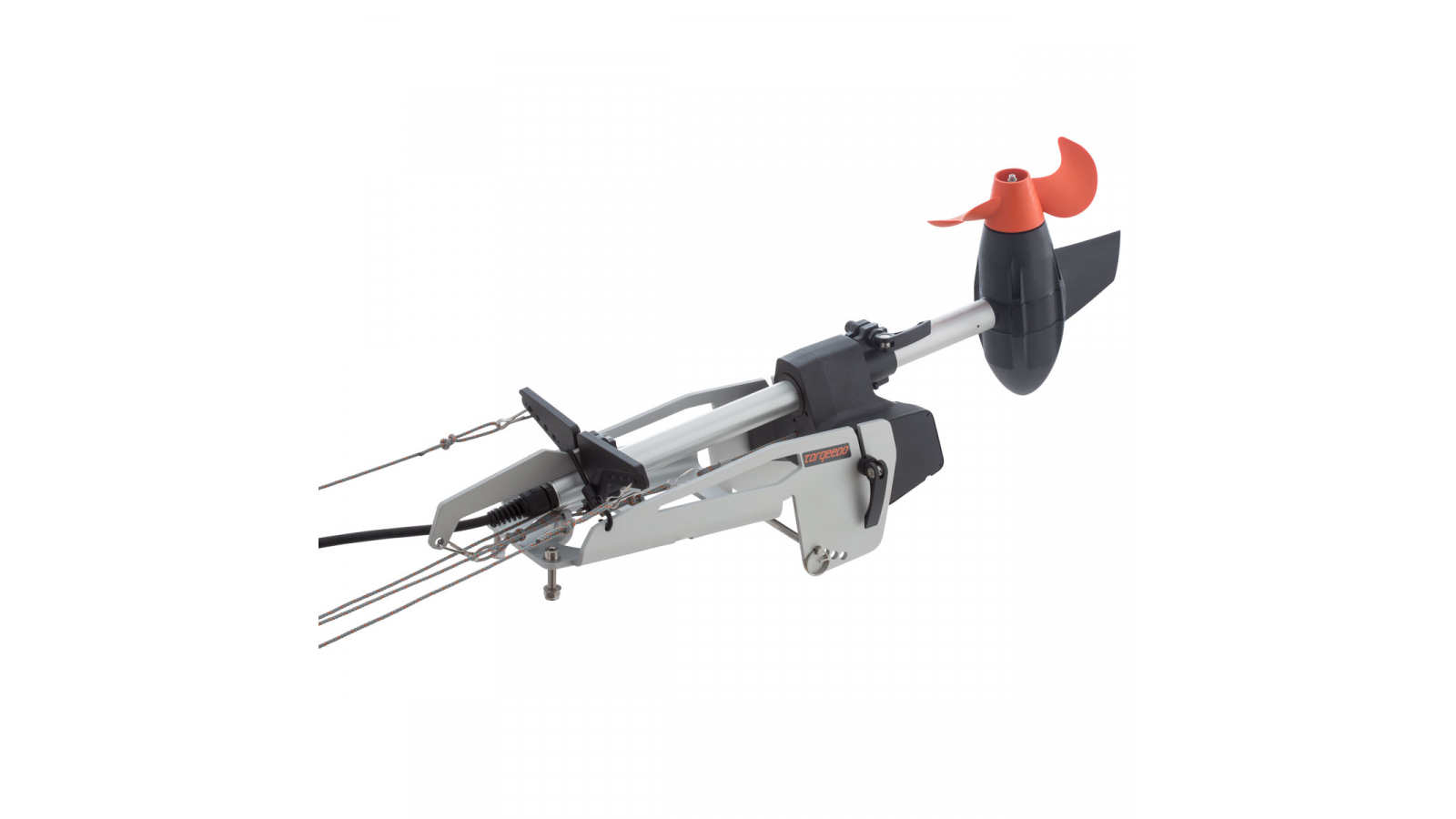

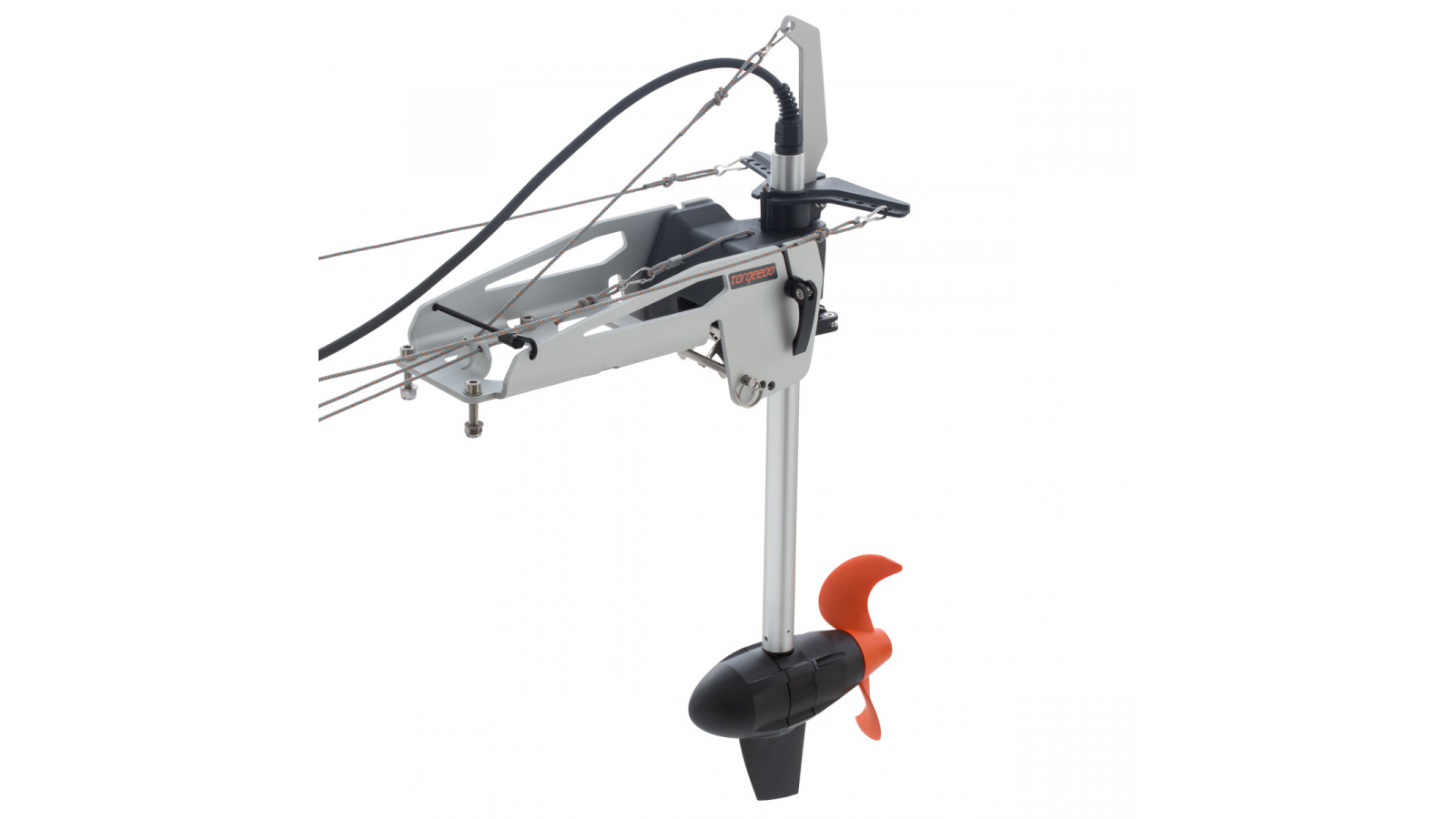

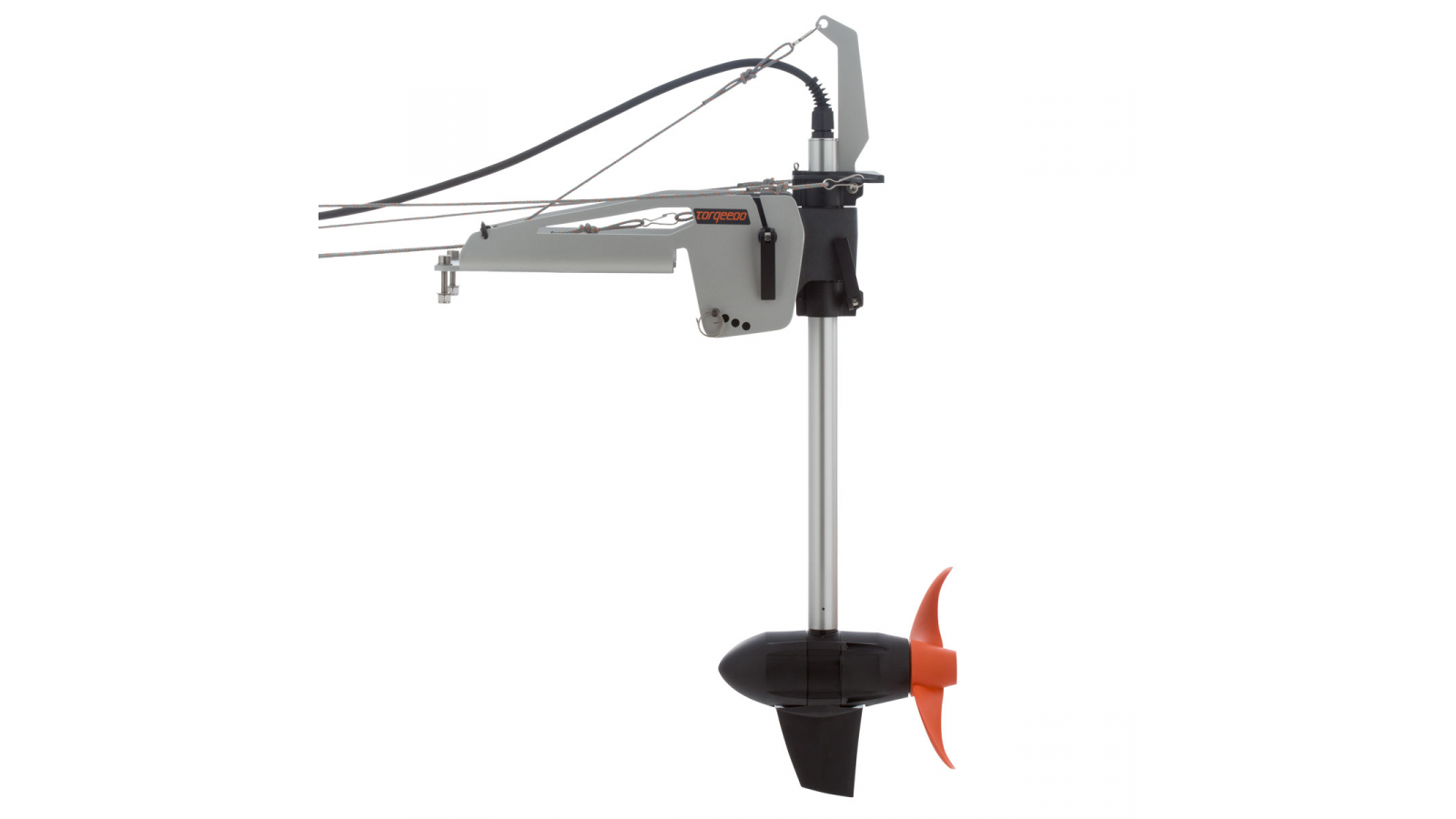

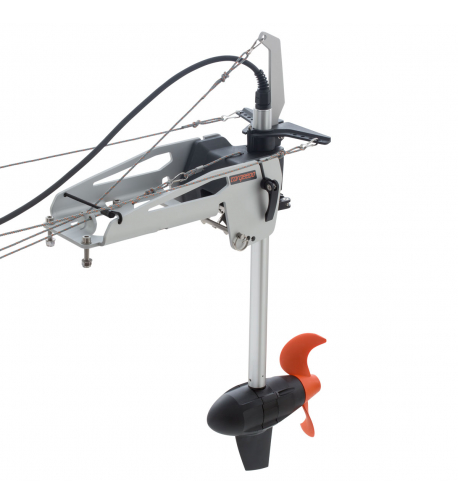

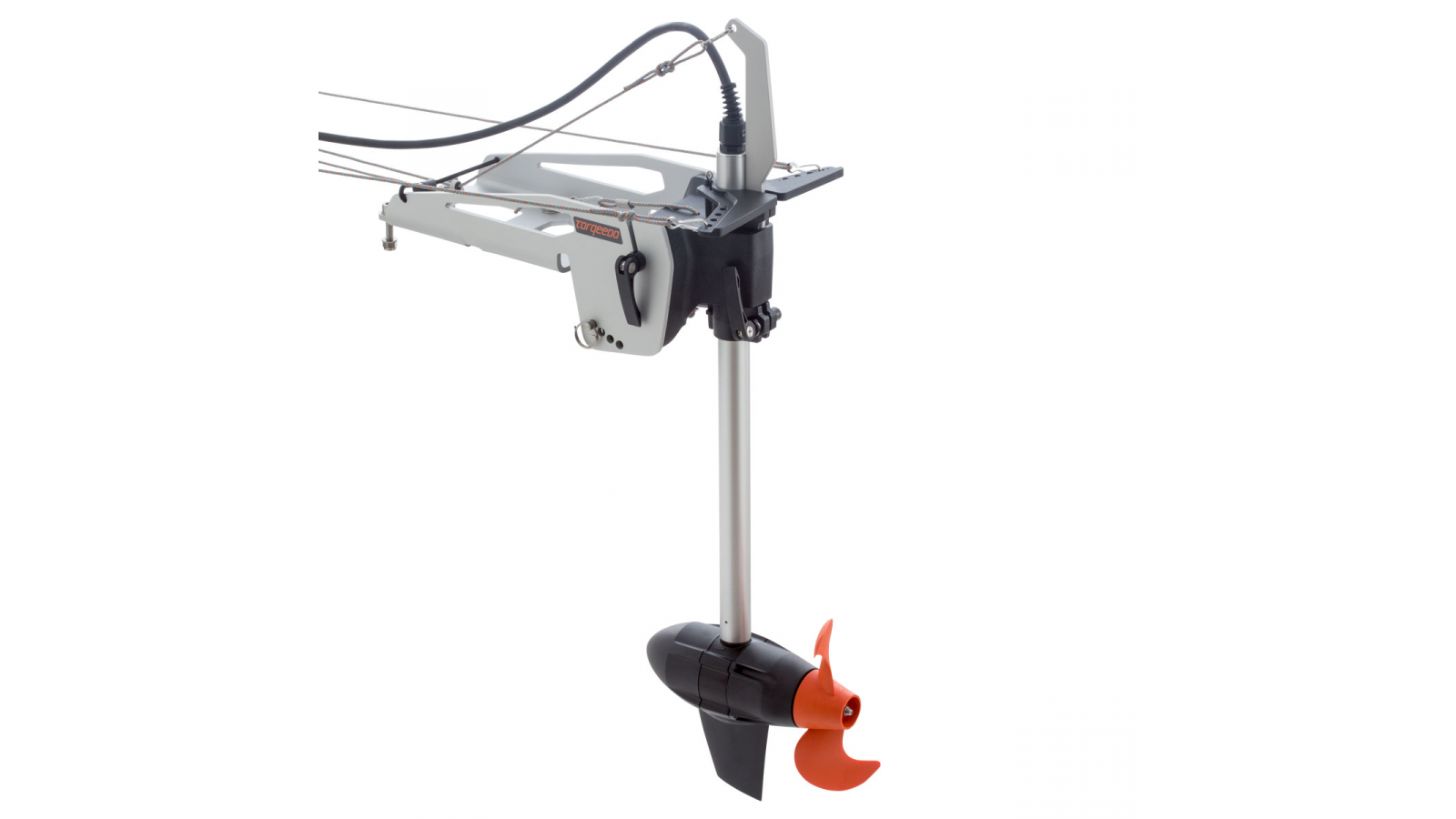

Torqeedo’s lightest outboard, the Ultralight 403 A, gets you to your favorite spot faster, and lets you stay there longer. It offers reliable performance, an innovative new angler mount and all the high-tech features of a genuine Torqeedo system: GPS built-in, real-time range and runtime display, solar charging and the latest lithium battery technology.
Our extremely light Ultralight 403 A fits on all popular types of kayak and canoes, and there are special models for special requirements.
Weight as low as 8.8 kg complete with battery
1 HP equivalent
With 320 Wh high-performance lithium battery
Comes including charger, throttle, onboard computer, GPS-based range calculation and emergency magnetic kill switch

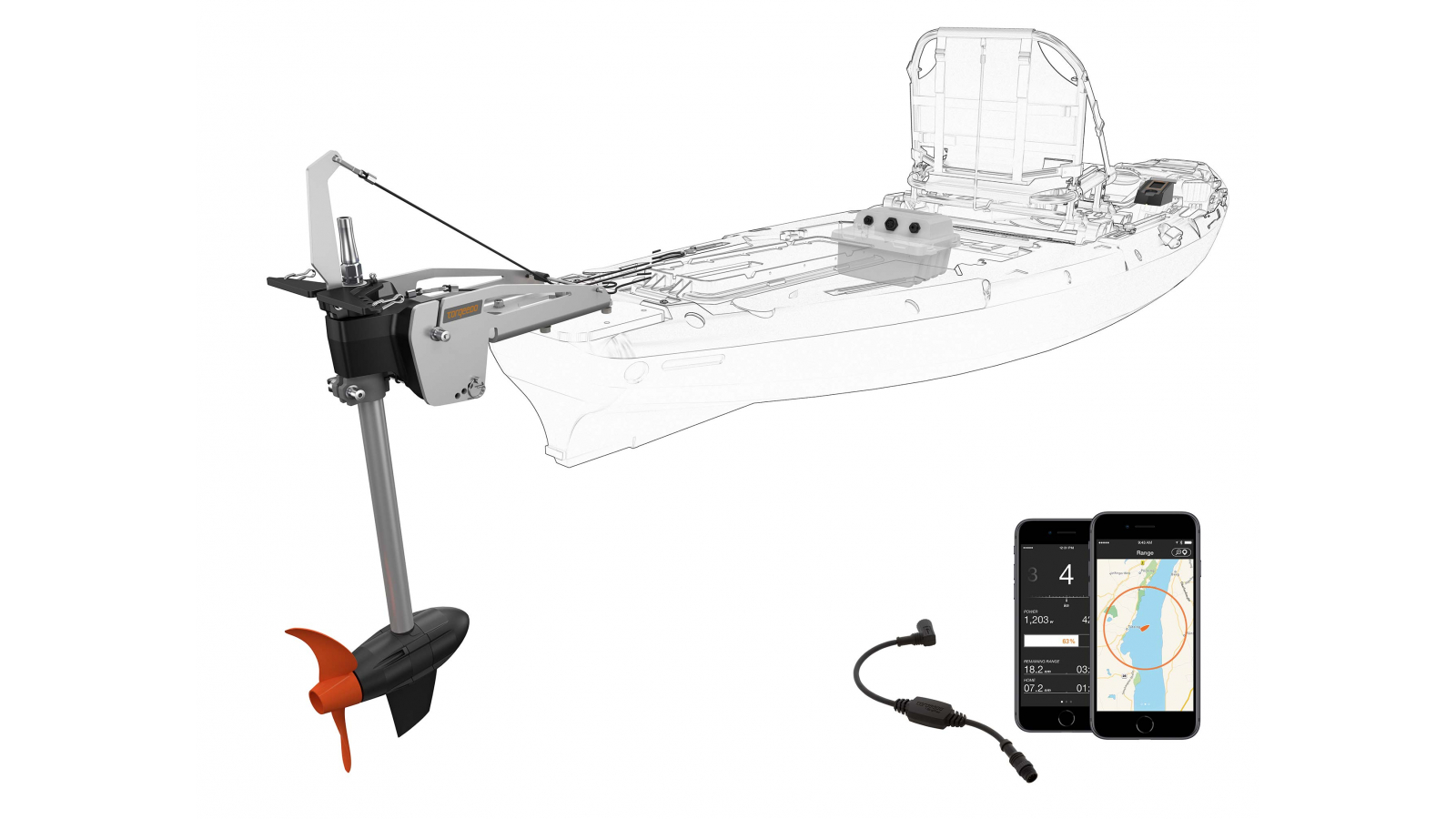

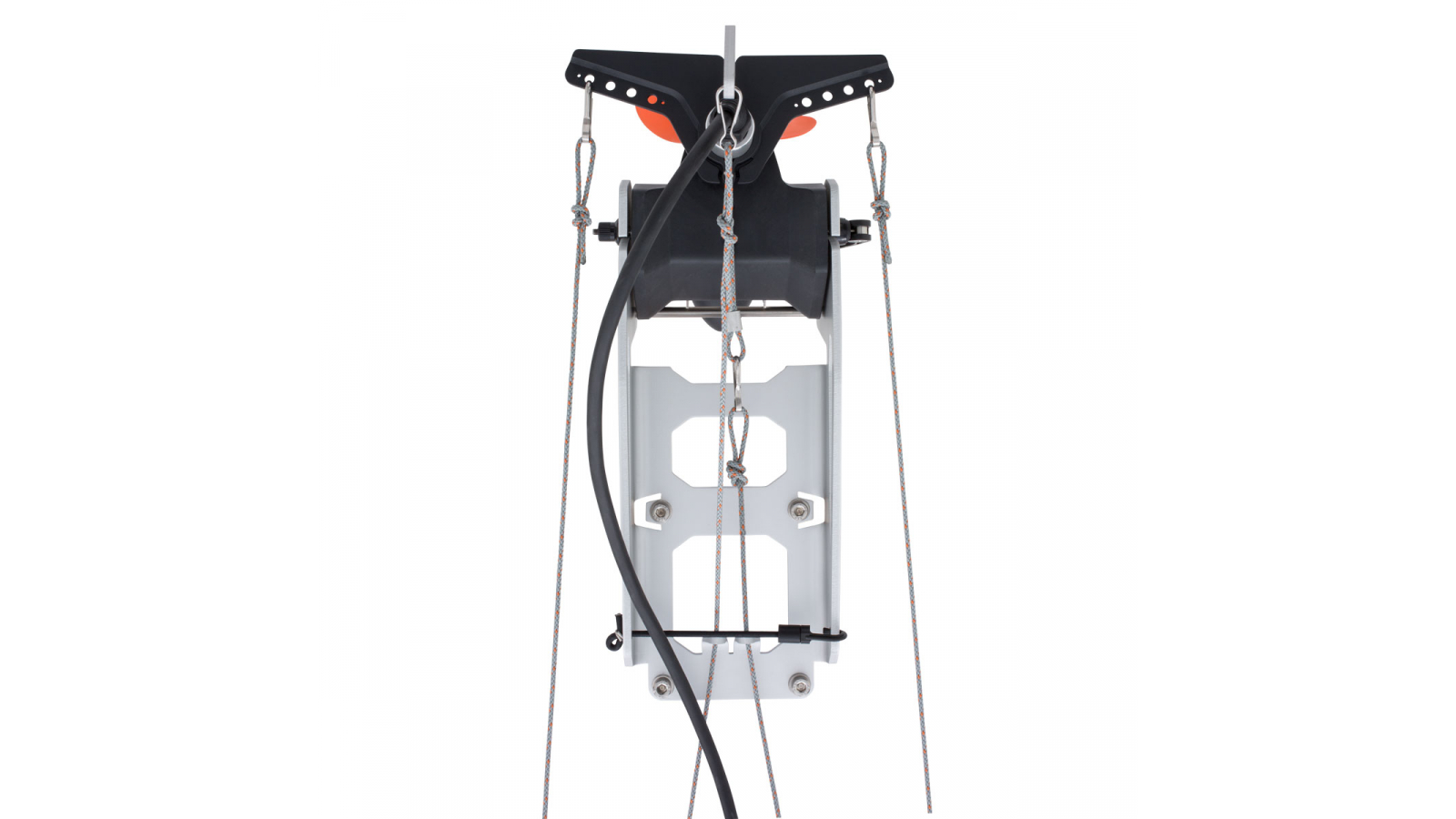

New angler mount with tilt and park mechanism, plus simple integration with the kayak’s steering unit.
Easy to mount on fishing kayaks
Range of up to 35 km

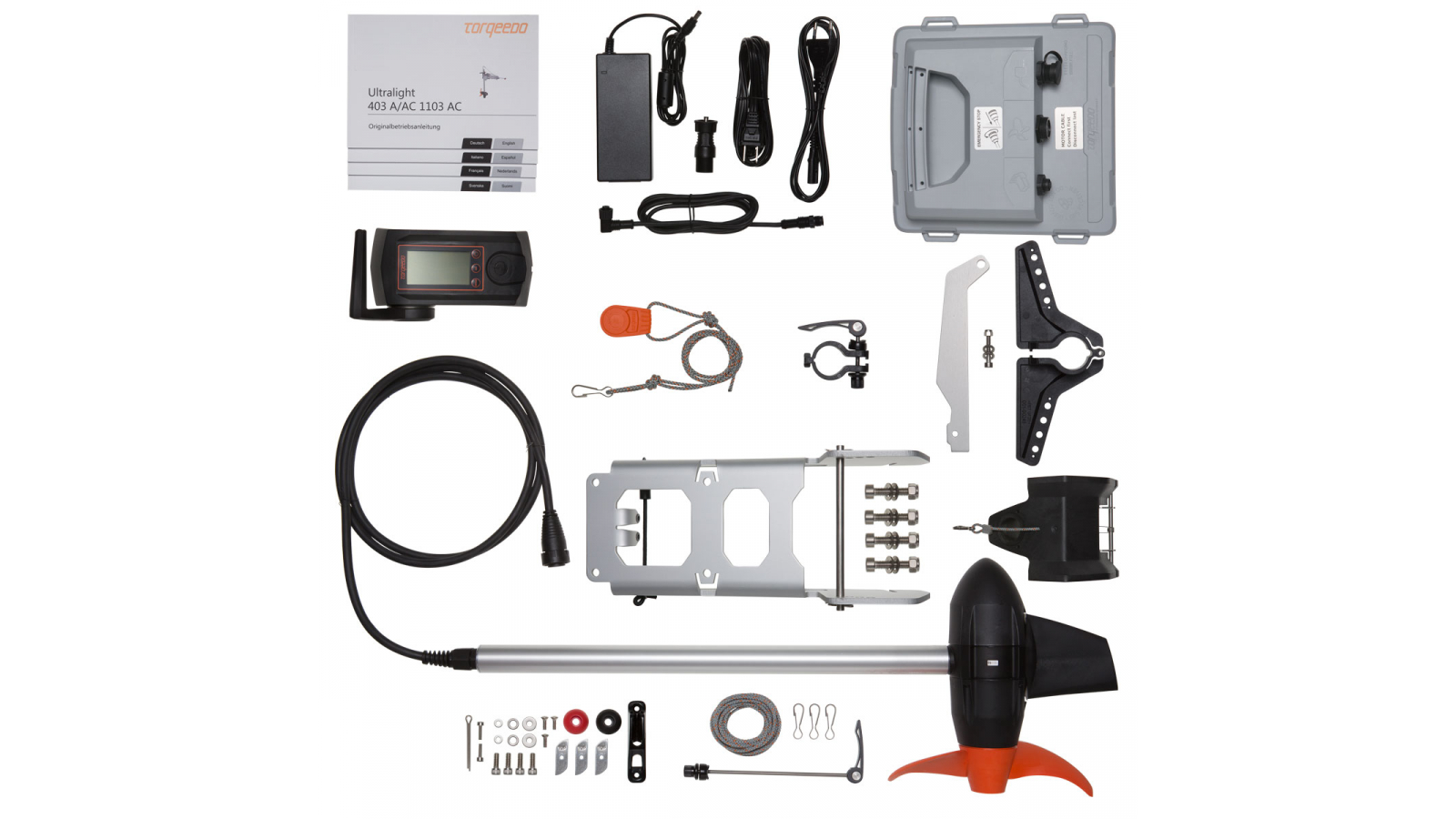

Equipment included: Ultralight 403 A with battery, charger, remote throttle, on-board computer, GPS-based range calculation and emergency magnetic stop key
Warranty: 2 years for non-commercial use
Speed/Range
Speed km/h | Range km | Running time in hours | |
Slow | 4,2 | 35 | 08:20 |
Half Throttle | 6 | 25 | 04:10 |
Full Throttle | 9,3 | 7,5 | 0:48 |
Technical data
Input power in watts | 400 |
Propulsive power in watts | 180 |
Comparable petrol outboards (propulsive power) | 1 HP |
Comparable petrol outboards (thrust) | 2 HP |
Maximum overall efficiency in % | 45 |
Static thrust in lbs* | 33 |
Integrated battery | 320 Wh Li-Ion |
Nominal voltage | 29.6 |
Final charging voltage | 33.6 |
Total weight in kg | 8.8 |
Motor weight without battery in kg | 5.0 |
Weight of integrated battery | 3.8 |
Shaft length in cm | 48 |
Standard propeller (v = speed in km/h at p = power in watts) | v10/p350 |
Alternative propeller options | - |
Maximum propeller speed in rpm | 1,200 |
Control | Throttle |
TorqLink | No |
Steering | Provision to connect to kayak rudder; lockable |
Tilting device | Manual with grounding protection |
Trim device | Manual, 4-step |
Stepless forward/reverse drive | Yes |
Integrated on-board computer | Yes |
