Rebelcell Quick Connect Fish Finder Outdoorbox

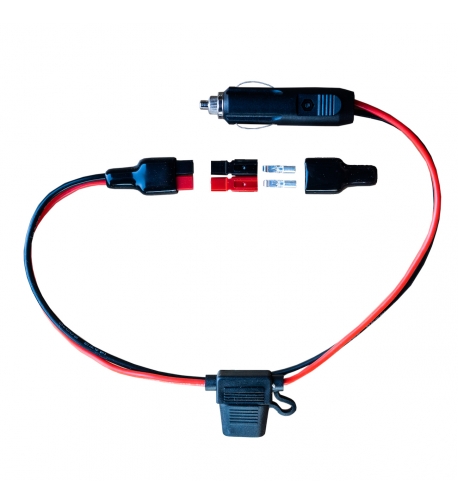

Cable with cigarette lighter plug, 3A fuse + extra connector for easy and secure connection of fish finder to the Outdoorbox (all models).

Benefits:

•     1 x 4mm2 cable: ~ 40 cm length with ANEN PA-45 red / black connectors, integrated 'in-line' 3A fuse and cigarette lighter plug
•     extra ANEN PA-45 connector for your fish finder
•     Nothing else required for a 1-click, reliable and secure connection of your battery and fish finder.


ATTENTION! Only use with Fish Finders, do not use with trolling engines.

Connect the cigarette lighter plug to a 12V socket on the Outdoorbox; the extra red/black ANEN connector needs to be connected tot the wiring of the fish finder.
The silver colored contact points of the ANEN connector can be crimped (used a  AMP crimping tool for non insulated cable connectors). After crimping the contact points need to be inserted in the the red (for +) or the black (for -) connector until they "click". The contact points are now secured and cannot be disconnected.  Slide the red and black parts in place with the black sheeth, and connect to the corresponding ANEN plug on the Quick Connect FF cable.
