BooneDox Landing Gear for CoosaFD

Kayak Wheel System - wheels attach, deploy, and retract without having to tip the kayak over on its side. Includes a machined gear track on top of each knuckle for mounting fishing accessories. Made in North Carolina... always will be.

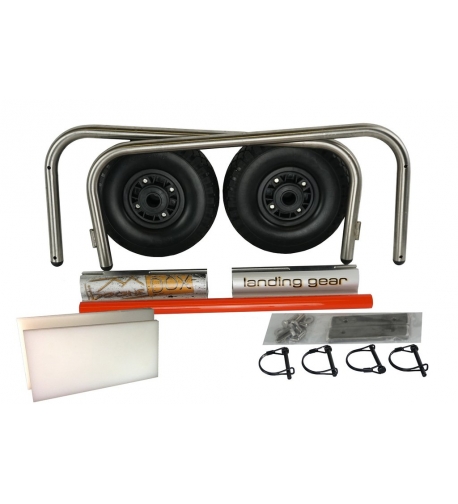

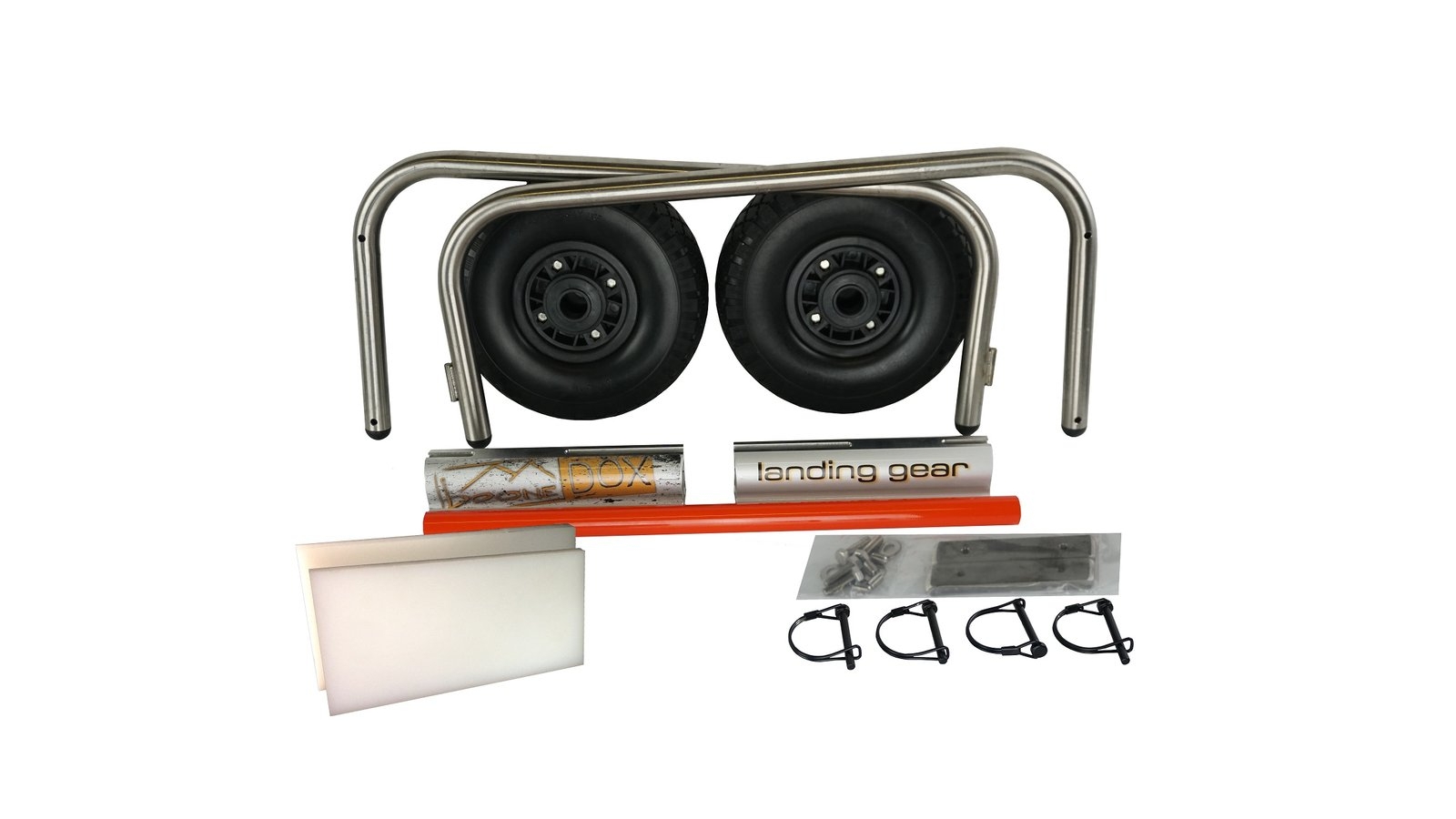

This particular set will fit the Jackson Coosa (both FD & HD & Cruse) and the Manta Ray Propel boats.  The kit comes with everything you need for installation on your boat.  You will have a 20" crossbar, and a set of our UHMW backing plates, to be used in conjunction with the standard stainless plates.

New Changes for 2018:

You will notice the thumb bolts are no longer shown on the Landing Gear.  These have been removed, and replaced with a 27" Bungee to tether your wheels together in the up position.  The weight of the boat itself will keep your legs in position during movement.

The set-screws for the crossbar are now located in the gear track on the top side of the knuckle.  This will allow you to keep your knuckles level during installation.

The Landing Gear legs are now all 24", giving the needed clearance on larger hulled boats, and allowing for easier loading/unloading with no or less drag.  The legs are now also wide enough to accept either the no-flat tire, or the Sand Tires.

• Color: Silver legs, aluminum knuckles, orange extension bar.
• Material: Stainless legs, aluminum body, stainless hardware, solid no-flat wheels
• Weight: 14 lbs.
• Size: Width is optimized for mounting directly behind the seat on the Coosa FD, HD and Manta Ray Propel

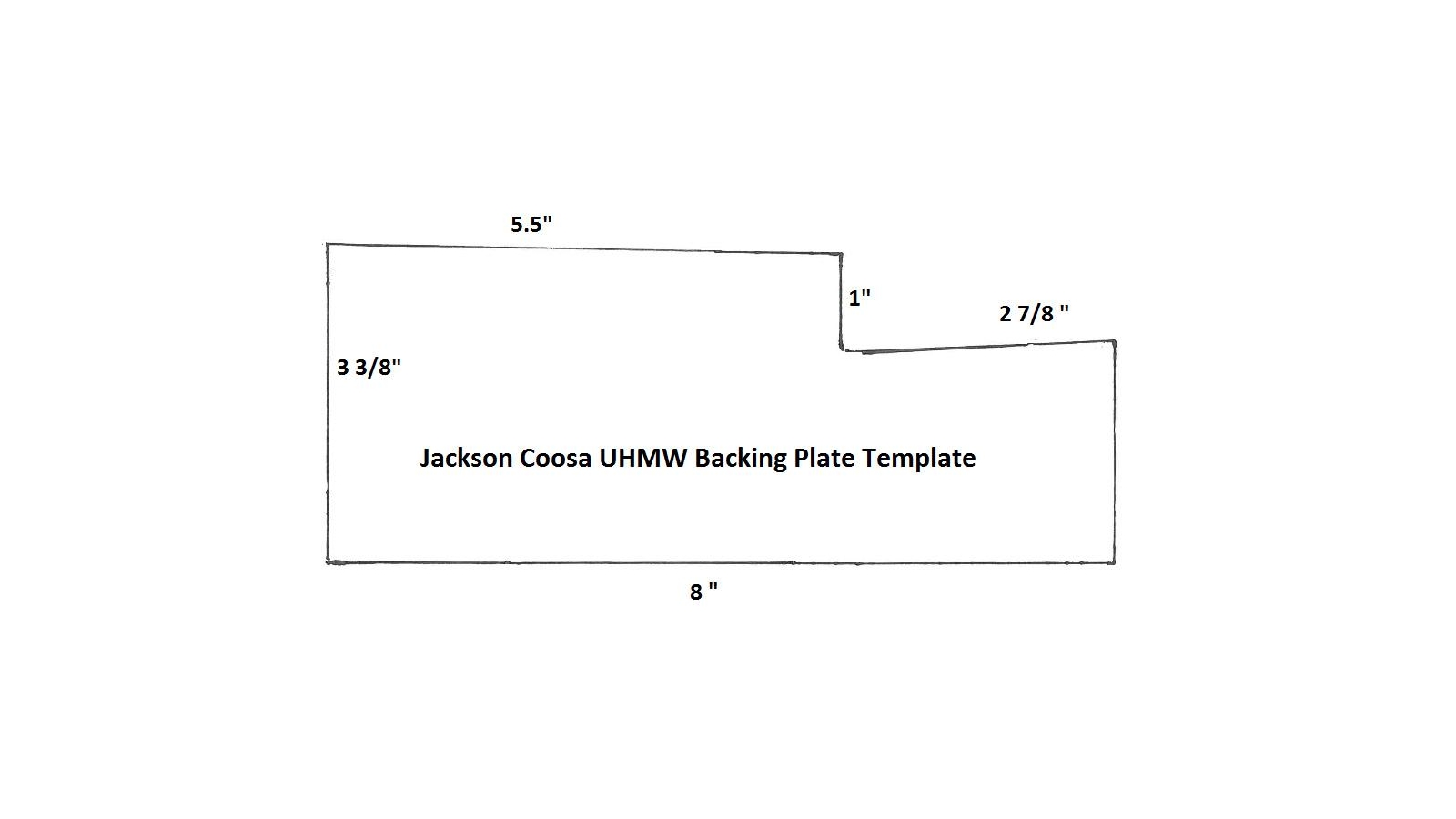

• Special Parts: Comes with a set of 4" x 8" x 1/2" thick UHMW backing plates.  These plates are easily cut to shape to maximize the "footprint" on the inside of the boat.  Once cut to shape, these plates go in between the inside of your kayak and the 5" stainless steel backing plates.

Landing Gear legs and wheels are intended for transportation only.  The Landing Gear is not intended to support the weight of a kayak during storage.  Leaving the Landing Gear deployed during storage can cause flat spotting on tires, and added stress to your kayak.

BooneDox Landing Gear from Jericho Palm on Vimeo.
